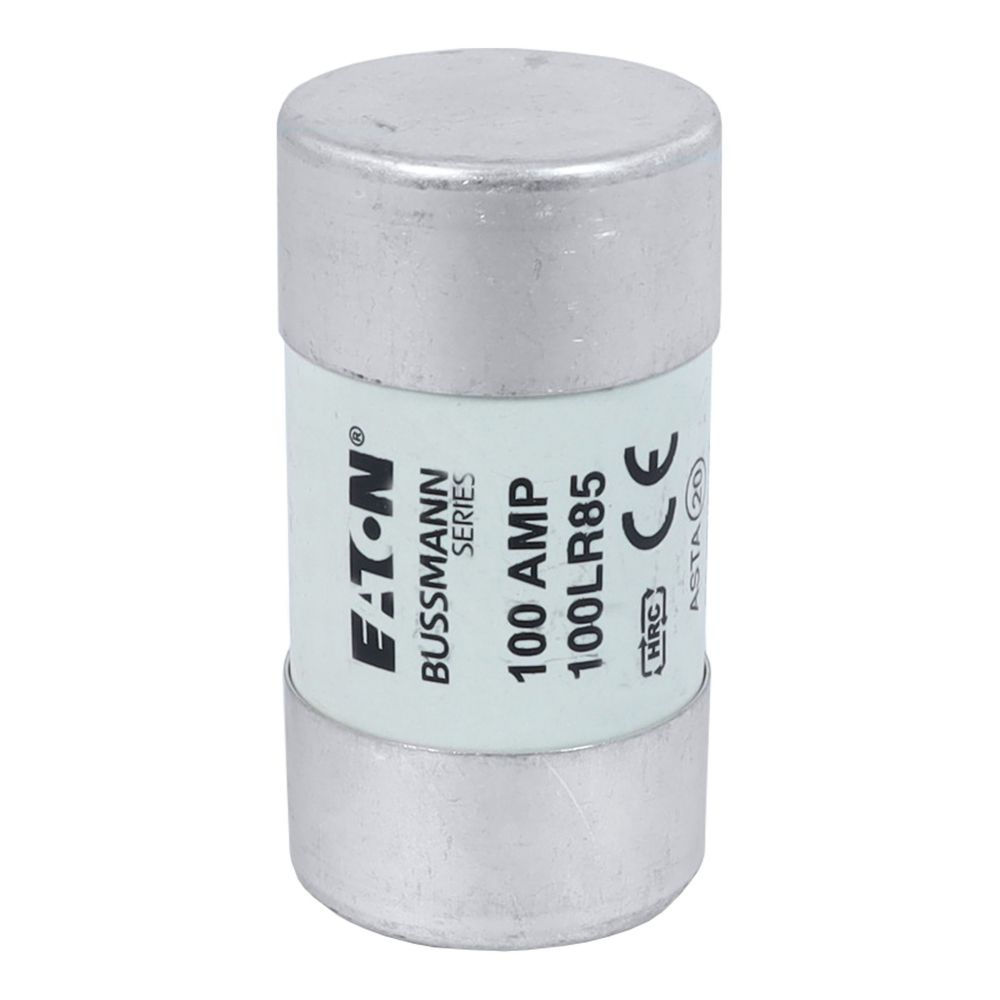

The Eaton Bussmann series low voltage British standard fuse provides robust electrical circuit protection rated for 100A at 415V AC. Designed with a 33kA breaking capacity and gG/gL operating characteristics, it ensures reliable overcurrent and short-circuit protection.
Featuring a system C type II compact design with ferrule end connections, this LR85 fuse link is engineered specifically for protecting incoming supply cables in residential and commercial properties.
Brand
Eaton
Product Name
Eaton Bussmann series low voltage british standard fuse
Catalog Number
100LR85
Model Code
100A 415V 33kA AC Low Voltage Fuse
Fuse Type
LR85
Amperage Rating
100 A
Voltage Rating
415 V
Voltage Type
AC
Breaking Capacity
33 kA
Class
Class gG/gL
Connection
Ferrule end x ferrule end
Application
Protection of incoming cables into residential and commercial properties
Product Length/Depth
57 mm
Product Width
30.2 mm
Product Height
30.2 mm
Product Weight
100 g
Compliances
CE Marked, RoHS Compliant
