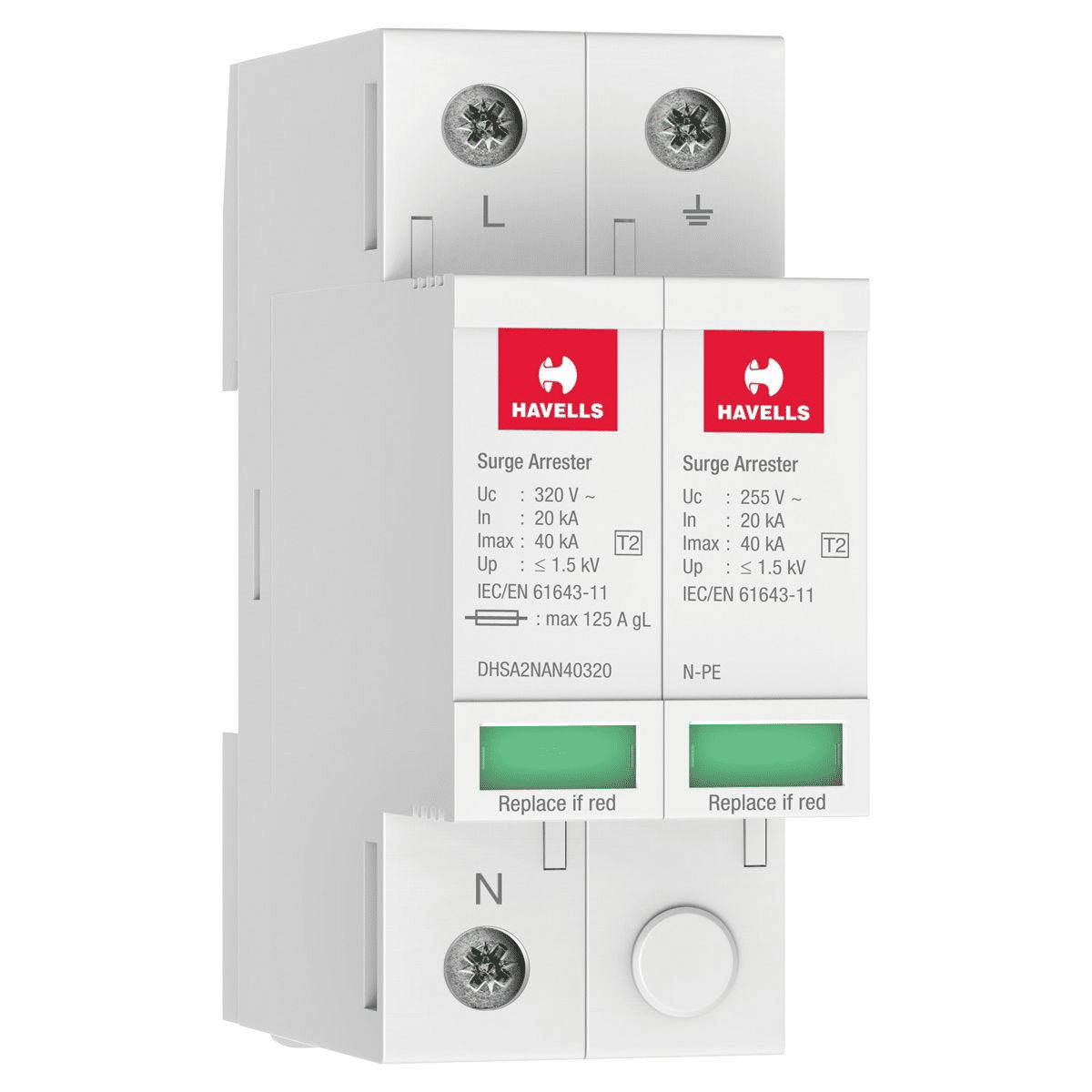

The Havells Type 2 AC Surge Protection Device delivers reliable common and differential mode surge suppression designed to safeguard terminal equipment in TT and TNS electrical installations. Featuring a low voltage protection level of up to 1.3 kV, it ensures comprehensive defense against overvoltage transients.
Equipped with pluggable, mechanically coded cartridges, arrester maintenance can be completed safely while the mains voltage remains active. The unit includes an integrated end-of-life indicator, remote signaling contact options, and dual-position DIN-rail mounting for simplified setup in standard distribution boards.
Imported By
Havells India Ltd.
Country Of Origin
China
Net Contents
1 N Main Unit
Brand
Havells
Product Type
Surge Protection Device (SPD)
SPD Type
Type 2 AC
Pole Configuration
SP+N (1P+N)
Voltage Protection Level (Up)
1.3 kV
Protection Modes
Common & Differential Mode
Standard Compliance
IEC/EN 61643-11
IP Rating
IP20 (Finger Touch-Proof)
Terminal Capacity
35 mm²
Mounting Type
DIN Rail
Product Weight
0.188
